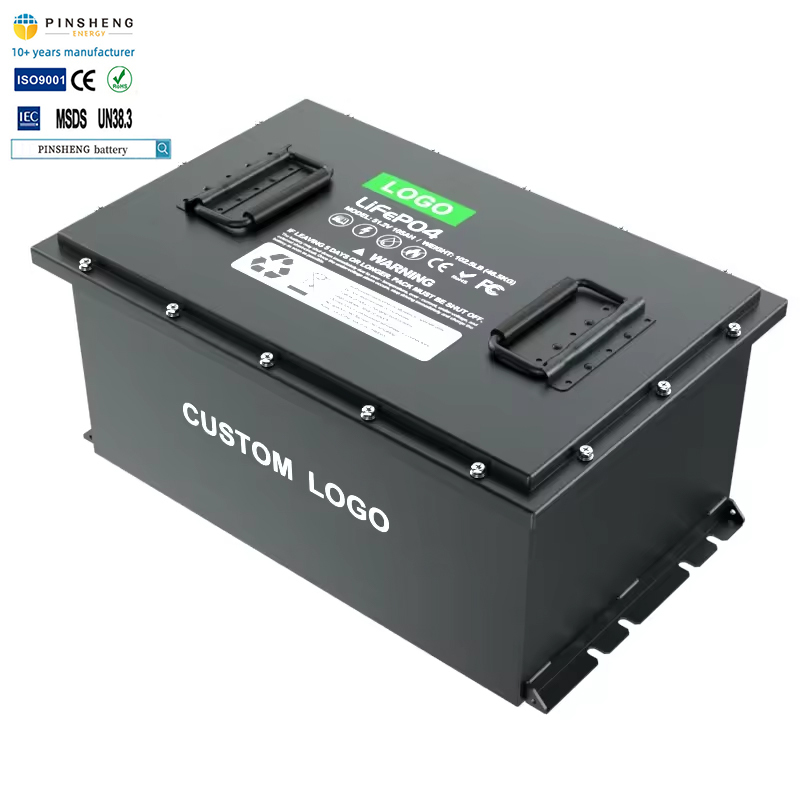

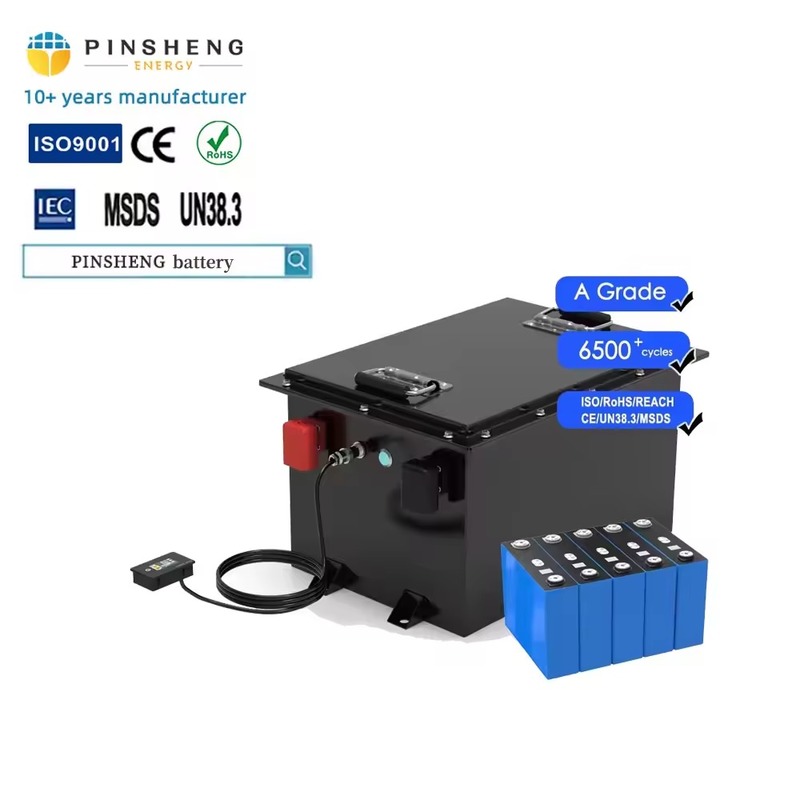

Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts

Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts

105Ah Lifepo4 Lithium Battery

72V Lithium Ion Battery Pack

48V/51.2V Electric Golf Cart Battery

Lugar de origen:

Hunan, China

Nombre de la marca:

PINSHENG ENERGY

Número de modelo:

PE-W22112202

Contacta con nosotros
Solicitar una cita
Detalles del producto
Tamaño de batería:
18650
Tipo de batería:
Lifepo4/batería de litio
Voltaje:
48 V/51.2 V
Bms:
BMS inteligente
Capacidad:
105Ah o modificado para requisitos particulares
Material anódico:
Ncm
Tasa de cobro:
1C
Tasa de descarga:
2C
Energía eléctrica:
5 000 Wh
Voltaje nominal:
51.2V
Capacidad nominal:
105 Ah
Energía de la batería:
5376Wh
Resistencia interna:
≤ 8mΩ
Vida en bicicleta:
≥6000 ciclos 80%DoD
Descarga:
<3>
Condiciones de pago y envío
Cantidad de orden mínima
2
Precio
$439-485
Descripción del producto
Custom LiFePO4 Lithium Ion Battery Pack
72V 105Ah Electric Golf Cart Battery
Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 0 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 1 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 2
Key Specifications
Electrical Characteristics Model Number PE-101
Nominal voltage 51.2V
Nominal capacity 105Ah
Battery energy 5376Wh
Internal resistance ≤ 8mΩ
Cycle life ≥6000 cycles (80% DOD)
Self discharge per month <3%
Charging Specifications
Charge cut off voltage 58.4V
Charge mode CC/CV (constant current/constant voltage)
Standard charge current 20A
Max charge current 50A
Discharge Specifications
Discharge cut off voltage 40V
Continuous discharge current 200A
Environmental Specifications
Charge temperature 0℃ to 45℃ (32F to 113F) @60±25% RH
Discharge temperature -5℃ to 60℃ @60±25% RH
Storage temperature 0℃ to 40℃ (32F to 104F) @60±25% RH
Mechanical Specifications
Case Metal case

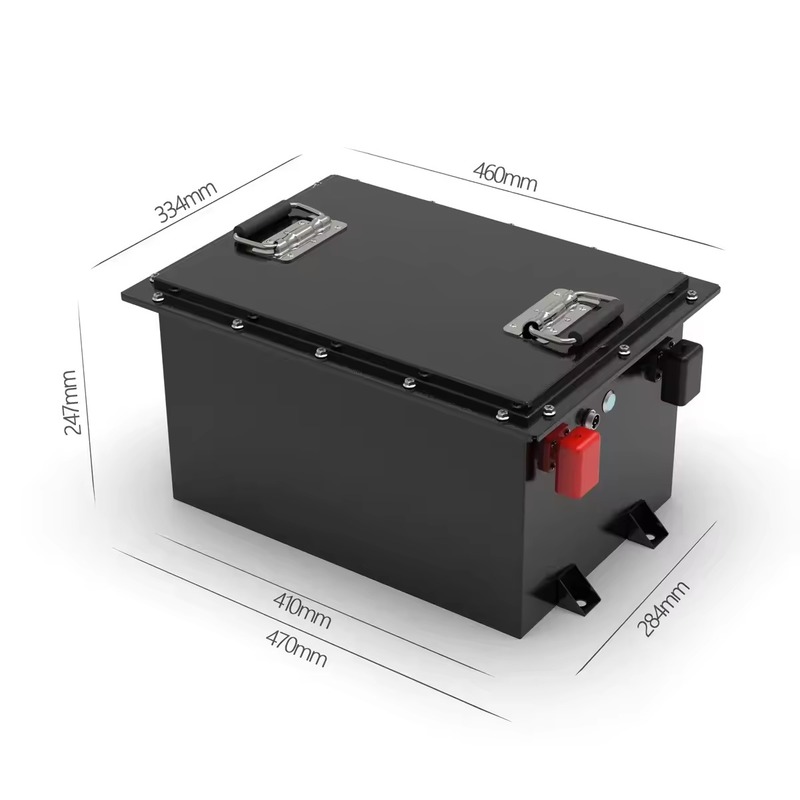

Dimension 470×334×247mm (L×W×H)
Terminal M10
Weight 44.60kg

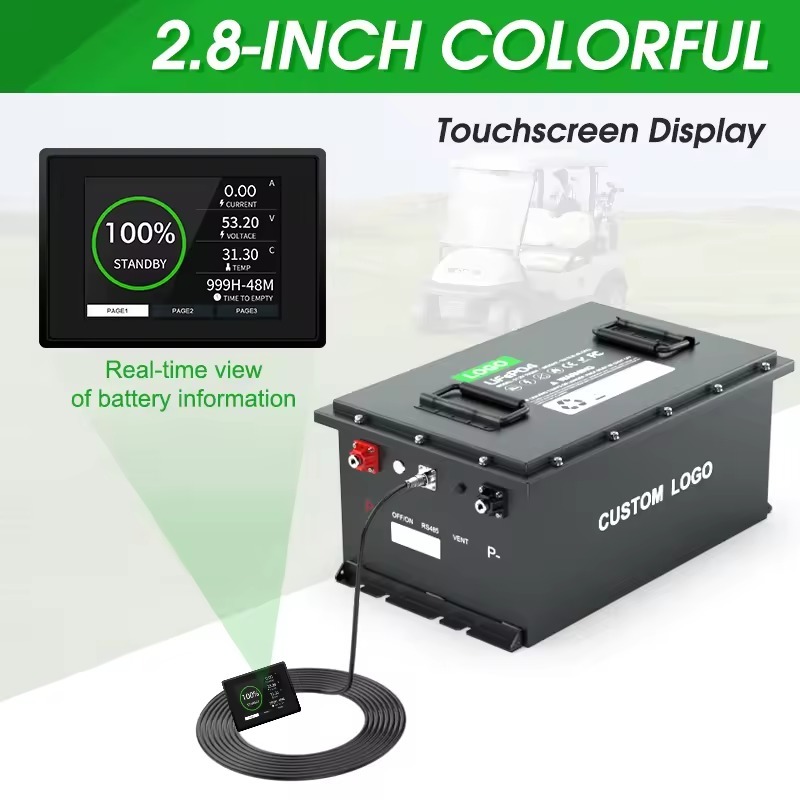

Function Custom LCD, App BT
Color Black

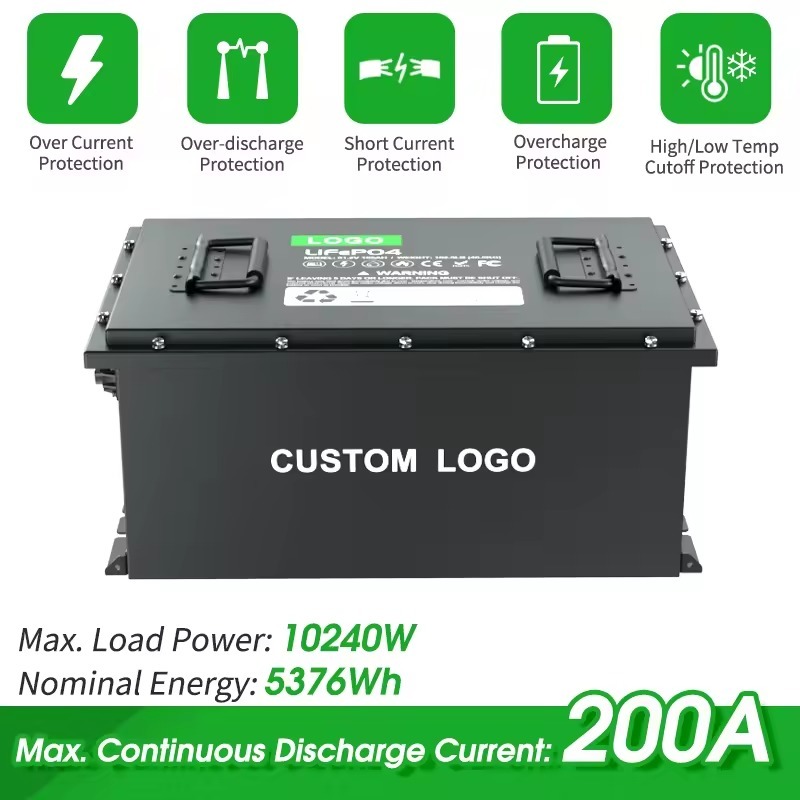

BMS Protection Features
  • Over-charge protection
  • Over-discharge protection
  • Over-current protection
  • Short circuit protection
  • Over-temperature protection
  • Balance functions
Certifications
  • CE
  • MSDS
  • UN38.3
Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 3 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 4 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 5
About Pinsheng Energy

Pinsheng Energy is a High-Tech Enterprise with R&D located in Changsha City, Hunan Province, near Guangzhou. With a 4,000 square meter workshop and 121 employees, we specialize in developing and producing lithium batteries and battery system integration.

After years of development and research, we have established a complete industry chain from research and production to sales. Our lithium batteries feature longer cycle life, higher security, greater reliability, and superior energy density.

Our products are widely used in energy storage systems (off-grid wind & solar energy storage, telecommunication systems, UPS) and power systems (electric motorcycles, bikes, scooters, tricycles, golf carts, forklifts, and electric vehicles).

Pinsheng Energy maintains a strict quality guarantee system to ensure high-quality products and has earned a strong reputation both in China and abroad. We prioritize customer needs and continuously improve our product quality and services, dedicated to becoming a top OEM & ODM lithium battery manufacturer worldwide.

Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 6 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 7 Custom Lifepo4 Lithium Ion Battery Pack 72V 105Ah with Smart BMS for Electric Golf Carts 8
